Stationary Concrete Batching Plant
Compare bucket-fed and belt-fed plant configurations across the documented HZS model range.
- 25–240 m³/h theoretical productivity
- Bucket or belt aggregate feeding
- 4.0 m documented discharge height
Model data is supplied by the client. Configuration and operating conditions need confirmation for your order.
Overview
Compare bucket-fed and belt-fed plant configurations across the documented HZS model range.
The technical data below retains the supplied model groups and table entries. Compare each column before selecting a configuration.
Pending confirmation. A model-specific operating video and full product narrative have not been supplied. No demonstration video is implied by this preview.
Documented configuration features
- JS-series mixer options across the model range
- Hoist-bucket and belt-conveyor feeding configurations
- Aggregate, water and additive weighing data supplied by model
Working principle
Pending confirmation. A reviewed working-principle description and operating manual are required for this equipment type. This section is reserved for that source material.
Model specifications
| Bucket type | Unit | HZS25 | HZS35 | HZS50 | HZS75 |
|---|---|---|---|---|---|
| Theoretical productivity | m3/hr | 25 | 35 | 50 | 75 |
| Mixer model | – | JS500 | JS750 | JS1000B | JS1500B |
| Mixing motor power | kw | 18.5 | 30 | 37 | 55 |
| Feeding mode | – | Hoist bucket | Hoist bucket | Hoist bucket | Hoist bucket |
| Cycling period | s | 72 | 72 | 72 | 72 |
| Max. aggregate size | mm | Ф80 | Ф80 | Ф80 | Ф80 |
| Aggregate bins capacity | m3 | 2*6 | 3*6 | 3*12 | 3*12 |
| Discharging height | m | 4.0 | 4.0 | 4.0 | 4.0 |
| Aggregate weighing precision | – | ±2% | ±2% | ±2% | ±2% |
| Power weighing precision | – | ±1% | ±1% | ±1% | ±1% |
| Water weighing precision | – | ±1% | ±1% | ±1% | ±1% |
| Additive weighing precision | – | ±1% | ±1% | ±1% | ±1% |
| Belt type | Unit | HZS60 | HZS90 | HZS120 | HZS150 | HZS180 | HZS240 |
|---|---|---|---|---|---|---|---|
| Theoretical productivity | m3/hr | 60 | 90 | 120 | 150 | 180 | 240 |
| Mixer model | – | JS1000 | JS1500 | JS2000 | JS3000 | JS3000 | JS4000 |
| Mixing motor power | kw | 37 | 55 | 2*37 | 2*55 | 2*55 | 2*75 |
| Feeding mode | – | Belt conveyor | Belt conveyor | Belt conveyor | Belt conveyor | Belt conveyor | Belt conveyor |
| Cycling period | s | 60 | 60 | 60 | 60 | 60 | 60 |
| Max. aggregate size | mm | Ф80 | Ф80 | Ф80 | Ф80 | Ф80 | Ф80 |
| Aggregate bins capacity | m3 | 3*12 | 3*12 | 4*20 | 4*20 | 4*20 | 4*25 |
| Discharging height | m | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 |
| Aggregate weighing precision | – | ±2% | ±2% | ±2% | ±2％ | ±2% | ±2% |
| Power weighing precision | – | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
| Water weighing precision | – | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
| Additive weighing precision | – | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
Source table entries are preserved, including model options and units. Ambiguous source labels or units require technical review; listed maxima must not be combined as simultaneous operating performance.
Structure & installation
The source table identifies the mixer, aggregate bins, feeding mode and discharge height for each model. A dimensioned foundation and installation drawing is still required for a specific configuration.
Application discussion
The company profile identifies construction, infrastructure and urban development as applications for its construction machinery and concrete equipment.
Review application requirementsSelection & operating limits
Pending confirmation. Confirm site dimensions, ground conditions, local requirements and the selected model’s technical documentation before use. No load chart, operating procedure or project engineering design is supplied by this page.
Manufacturing & product evidence
EPDAS identifies specialized manufacturing bases for the relevant equipment families.
Pending confirmation. Model-specific inspection and certification evidence remains to be confirmed.
Purchasing & support
The company profile lists global sales and after-sales service as part of the Group’s activities. Discuss documentation, training, spare parts and technical support for the selected equipment.
Pending confirmation. Warranty, response times, delivery schedule, installation scope and commercial terms are confirmed for the individual order.
Selection questions
Which models are included?
The complete supplied model groups and technical rows appear in the specifications section above.

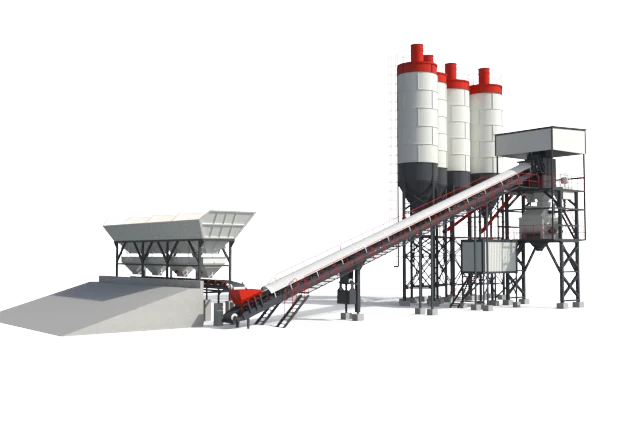

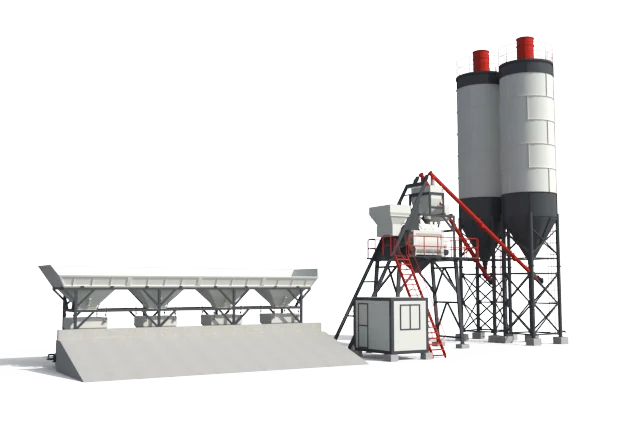

Does the photo identify the exact configuration?
The images illustrate the equipment type. Match the selected model and order configuration with the sales team.
What should I send with an inquiry?
Share your application, location, capacity or load requirements and site constraints. Model-specific limits and support terms require confirmation.
