Telescopic Handler Forklifts
Telehandler
Compare the documented telescopic handler models by rated load, lift height and configuration.
- 2.5–7 t maximum rated load across models
- 6–18 m maximum lifting height across models
- Models with and without outriggers
Model data is supplied by the client. Configuration and operating conditions need confirmation for your order.
Overview
Compare the documented telescopic handler models by rated load, lift height and configuration.
The technical data below retains the supplied model groups and table entries. Compare each column before selecting a configuration.
Telehandler (T3512/T4014/T5010/T5018/T7018) with outriggers
While these are our top-performing models, our catalog includes a wider selection of machinery tailored for diverse job site needs such as T3510, T4010, T4018, T5014, T6018. We invite you to contact us to discover our full range and receive customized equipment solutions for your projects.
Telescopic Handler (T2506/T3007/T3507/T4007) without outriggers
Pending confirmation. A model-specific operating video and full product narrative have not been supplied. No demonstration video is implied by this preview.
Documented configuration features
- Two-, three- and four-section boom configurations in the model tables
- Hydraulic transmission and controls specified by model
- Fork dimensions and tyre configurations documented for comparison
Working principle
Pending confirmation. A reviewed working-principle description and operating manual are required for this equipment type. This section is reserved for that source material.
Model specifications
| Model | T3512 | T4014 | T5010 | T5018 | T7018 |
|---|---|---|---|---|---|
| Load | Max. 3.5t | Max. 4t | Max. 5t | Max. 5t | Max. 7t |
| Lifting Height | Max. 12m | Max. 14m | Max. 10m | Max. 18m | Max. 17.6m |
| Engine Power | 85KW/114 HP | 85KW/114 HP | 91KW/122 HP | 91KW/122 HP | 119KW/160 HP |
| Emission Standards | Stage Ⅱ Options: StageⅢ, StageⅤ, EPA 4 | Stage Ⅱ Options: StageⅢ, StageⅤ, EPA 4 | Stage Ⅱ Options: StageⅢ, StageⅤ, EPA 4 | Stage Ⅱ Options: StageⅢ, StageⅤ, EPA 4 | Stage Ⅱ Options: StageⅢ, StageⅤ, EPA 4 |
| Axles & Braking | Wet type with Oil-immersed Electric Brake | Wet type with Oil-immersed Electric Brake | Wet type with Oil-immersed Electric Brake | Wet type with Oil-immersed Electric Brake | Wet type with Oil-immersed Electric Brake |
| Hydraulic Transmission | Torque Converter & Gear Pump | Torque Converter & Gear Pump | Torque Converter & Gear Pump | Torque Converter & Gear Pump | Torque Converter & Gear Pump |
| Hydraulic Operation | Load-sensitive Vavel + Electro-hydraulic Proportional Handle System | Load-sensitive Vavel + Electro-hydraulic Proportional Handle System | Load-sensitive Vavel + Electro-hydraulic Proportional Handle System | Load-sensitive Vavel + Electro-hydraulic Proportional Handle System | Load-sensitive Vavel + Electro-hydraulic Proportional Handle System |
| Moment limiter | √ | √ | √ | √ | √ |
| Boom Configuration | 3 Sections | 3 Sections | 3 Sections | 4 Sections | 4 Sections |
| Tires | Pneumatic-tires (16/70-24) | 400/80R24 Tubeless Tire | 400/80R24 Tubeless Tire | 400/80R24 Tubeless Tire | 17.5-25 Tubeless Tire |
| Dimensions | 5800*2200*2550mm | 6400*2350*2550mm | 6400*2350*2550mm | 6600*2350*2650mm | 6880*3650*2800mm |
| Self-leveling Forks | 1220*150*50mm (L*W*T) | 1220*150*50mm (L*W*T) | 1220*125*50mm (L*W*T) | 1220*125*50mm (L*W*T) | 1220*150*50mm (L*W*T) |
| Model | T2506 | T3007 | T3507 | T4007 |
|---|---|---|---|---|
| Load | Max. 2.5t | Max. 3t | Max. 3.5t | Max. 4.0t |
| Lifting Height | Max. 6m | Max. 7m | Max. 7m | Max. 7m |
| Engine Power | 58KW/78HP | 76KW/102 HP | 76KW/102 HP | 85KW/114 HP |
| Emission Standard | Stage Ⅱ Options: StageⅢ, StageⅤ, EPA 4 | Stage Ⅱ Options: StageⅢ, StageⅤ, EPA 4 | Stage Ⅱ Options: StageⅢ, StageⅤ, EPA 4 | Stage Ⅱ Options: StageⅢ, StageⅤ, EPA 4 |
| Axles & Braking | Dry type with Air-cut brake | Dry type with Air-cut brake | Dry type with Air-cut brake | Wet type with Oil-immersed Electric Brake |
| Hydraulic Transmission | Torque Converter & Gear Pump | Torque Converter & Gear Pump | Torque Converter & Gear Pump | Torque Converter & Gear Pump |
| Hydraulic Operation | Hydraulic Pilot Handle System | Hydraulic Pilot Handle System | Hydraulic Pilot Handle System | Load-sensitive Vavel + Electro-hydraulic Proportional Handle System |
| Moment limiter | ✘ | ✘ | √ | √ |
| Boom Configuration | 2 Sections | 2 Sections | 2 Sections | 2 Sections |
| Tires | 12-16.5 Tubeless Tire | Pneumatic-tires (16/70-20) | Pneumatic-tires (16/70-20) | 400/70-24 Tubeless Tire |
| Dimensions | 4000*2020*2050mm | 4650*2200*2550mm | 4650*2200*2550mm | 4650*2200*2550mm |
| Self-leveling Forks | 1220*150*50mm (L*W*T) | 1220*150*50mm (L*W*T) | 1220*150*50mm (L*W*T) | 1220*150*50mm (L*W*T) |
Source table entries are preserved, including model options and units. Ambiguous source labels or units require technical review; listed maxima must not be combined as simultaneous operating performance.
Structure & installation

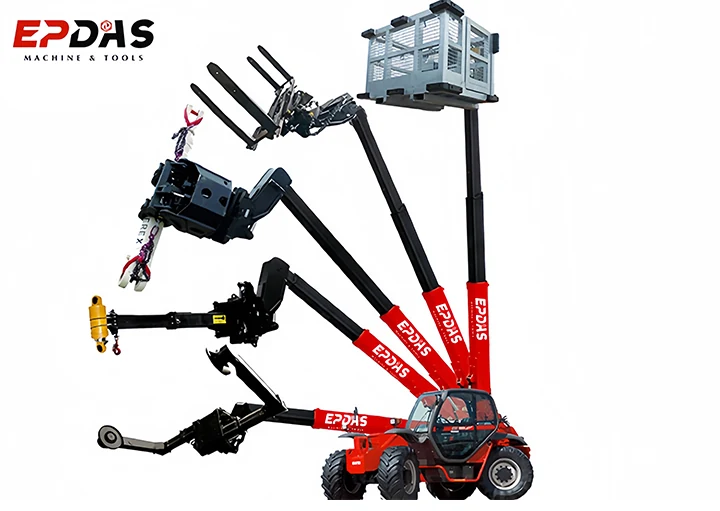

The supplied tables distinguish models with outriggers from models without outriggers. Attachment illustrations show category options; exact attachment compatibility and a model-specific load chart need confirmation.
Application discussion
The company profile identifies construction, infrastructure and urban development as applications for its construction machinery and concrete equipment.
Review application requirementsSelection & operating limits
Pending confirmation. Confirm site dimensions, ground conditions, local requirements and the selected model’s technical documentation before use. No load chart, operating procedure or project engineering design is supplied by this page.
Manufacturing & product evidence
EPDAS identifies specialized manufacturing bases for the relevant equipment families.
Pending confirmation. Model-specific inspection and certification evidence remains to be confirmed.
Purchasing & support
The company profile lists global sales and after-sales service as part of the Group’s activities. Discuss documentation, training, spare parts and technical support for the selected equipment.
Pending confirmation. Warranty, response times, delivery schedule, installation scope and commercial terms are confirmed for the individual order.
Selection questions
Which models are included?
The complete supplied model groups and technical rows appear in the specifications section above.
Does the photo identify the exact configuration?
The images illustrate the equipment type. Match the selected model and order configuration with the sales team.
What should I send with an inquiry?
Share your application, location, capacity or load requirements and site constraints. Model-specific limits and support terms require confirmation.
